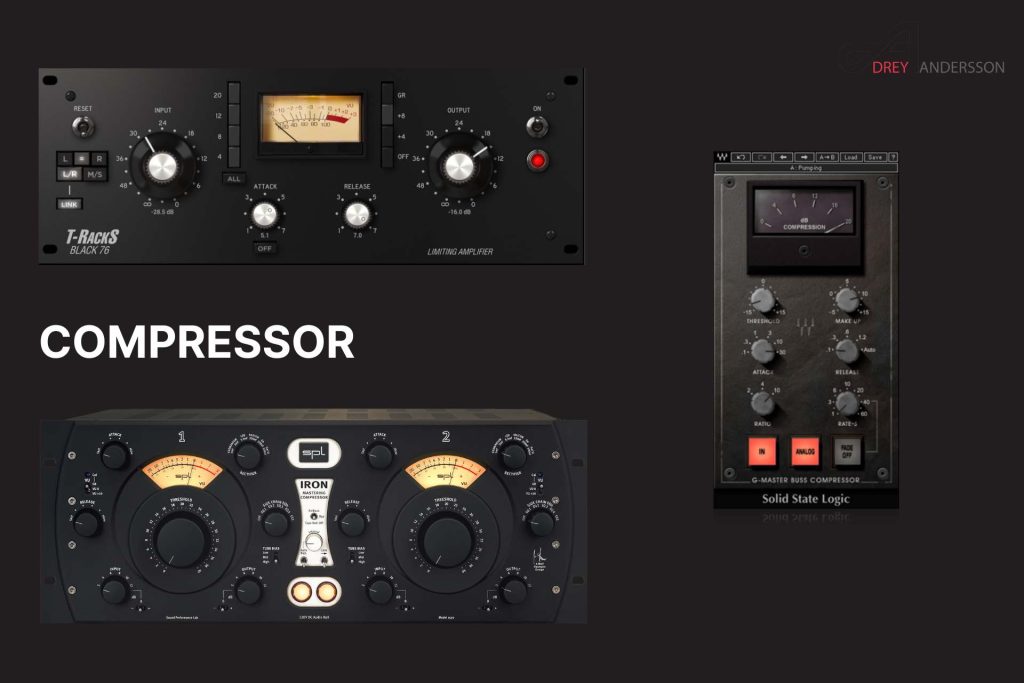

What is a Compressor?
If you’ve ever dabbled in sound production or broadcasting, chances are you’ve come across a ‘compressor.’ But what exactly is an audio compressor, and why is it essential in the world of sound?
History of Audio Compressors
Audio compressors have been integral tools in sound production since the mid-20th century. Their advent was a game-changer, allowing for unprecedented control over the dynamic range of audio signals.
Basic Functionality of a Compressor
A compressor, at its core, is a device that moderates the dynamic range of an audio signal. It does so by attenuating signals that exceed a certain threshold and amplifying quieter sounds.
How a Compressor Works
In simpler terms, a compressor minimizes the difference between the loudest and quietest parts of an audio signal. This ‘squashing’ of the dynamic range allows for a more balanced and consistent sound output.
Compressor Parameters and Their Significance
Understanding compressor parameters is key to mastering their use. Some common parameters include:
- Attack: The time it takes for the compressor to kick in once a signal crosses the threshold.
- Release: How long the compressor takes to stop compressing after the signal drops below the threshold.
- Threshold: The level at which the compressor starts working.
- Ratio: The degree of compression applied.
- Knee: Describes the onset of compression – a ‘hard’ knee compresses suddenly, a ‘soft’ knee more gradually.
- Gain: Allows for the overall output level to be increased after compression.
Types of Audio Compressors
There are various types of audio compressors, each with its unique characteristics and uses.
VCA Compressors
VCA (Voltage Controlled Amplifier) compressors are versatile and provide excellent control over the compression parameters. They’re popular in studio settings due to their precision.
Optical Compressors
Optical compressors use a light element and photocell to control the compression. They provide a smooth, musical compression, making them ideal for applications like vocal tracks and bass.
Tube Compressors
Tube compressors use vacuum tubes in their signal path. They are known for their warm, vintage tone that adds a certain richness to the audio. These compressors are often sought-after in music production for their unique sonic character.
FET Compressors
FET (Field-Effect Transistor) compressors are valued for their speed and precision. They are ideal for situations requiring fast attack times, such as drum recordings or vocal sibilance control.
How to Use a Compressor in Different Settings
Compressors have a wide range of applications, from music production to live sound and broadcasting.
Compressors in Music Production
In music production, compressors are used to shape the sound of individual tracks and the mix as a whole. They can smooth out vocals, tighten up bass lines, add punch to drums, and bring cohesion to the entire mix.
Compressors in Live Sound
In a live setting, compressors control the dynamic range to prevent audio peaks from causing distortion or damage to the sound system. They also help maintain a balanced mix, ensuring all elements of the performance can be heard clearly.
Compressors in Broadcasting
In broadcasting, compressors are essential for maintaining a consistent volume level. This prevents sudden volume spikes or drops, making for a more enjoyable listening experience for the audience.
Selecting the Right Compressor
Choosing the right compressor depends on various factors, including the audio source, the desired sound, and the overall context of use. Each type of compressor has its strengths and considerations, so it’s about finding the one that best suits your needs.
List of the most popular Compressors in the audio industry:
- Teletronix LA-2A: Famous for its warm, smooth sound, the LA-2A is an optical compressor often used on vocals and bass.
- Universal Audio 1176LN: A classic FET compressor, known for its fast attack time and versatility.
- SSL G-Series Bus Compressor: Often used for ‘gluing’ mixes together, this VCA compressor is a staple on the stereo bus of many mixing engineers.
- Empirical Labs Distressor: This modern compressor offers a range of tones, from clean and precise to warm and colored.
- DBX 160A: A classic compressor for drums, especially kick and snare. Its design is simple yet effective.
- Fairchild 670: A legendary tube compressor, loved for its incredibly musical sound. It’s often used for mastering and mix bus compression.
- Neve 33609: Known for its smooth, musical compression, this compressor is a favorite for bus compression and individual tracks.
- API 2500: This versatile stereo bus compressor is well-regarded for its ability to shape the punch and tone of a mix.
- Tube-Tech CL 1B: A high-end tube compressor, often used on vocals in pop and hip-hop music.
- Manley Variable Mu: Another tube-based compressor, famous for its smooth, transparent compression and fantastic stereo imaging.
Conclusion
Understanding what a compressor is and how it functions can greatly improve your sound production skills. Whether you’re a music producer, a live sound engineer, or a broadcaster, compressors are indispensable tools in controlling and enhancing sound. Remember, the best way to learn is by doing, so don’t hesitate to get hands-on experience!
FAQs
1. Can I use a compressor for any type of audio source?
Yes, compressors can be used with any audio source. However, the settings you use will depend on the specific source and the desired result.
2. How do I know when I’m over-compressing?
Signs of over-compression can include a lack of dynamics, a ‘pumping’ sound, or an overly squashed mix. It’s important to use your ears and listen critically to the effect of the compression.
3. Is it better to use a hardware compressor or a software compressor?
Both hardware and software compressors have their merits. Hardware compressors often offer a unique warmth and character, while software compressors provide flexibility and convenience. Although, the software emulations are so good nowadays that you don’t need any expensive hardware to still get that analog warmth.
4. How does a compressor differ from a limiter?
While both reduce dynamic range, a limiter is essentially a compressor with a very high ratio. Limiters are used to prevent signals from exceeding a specific level.
5. What’s a multiband compressor?
A multiband compressor allows you to apply different compression settings to different frequency ranges. This can be useful for complex audio sources like a full mix or a master track.
