Complete Roland JV Guide including JD, and XV Series

When I picked up my JV-880 about 10 years ago for 70 bucks off ebay when I was a student and now in 2026 added a JV-2080 to my rack, I found myself falling down an endless rabbit hole of forum threads, archived FAQs, scattered blog posts, and conflicting opinions. Which DACs sound warmer? Why does my 880 handle expansion boards differently than my 2080? Are the capacitors in my SR-JV80 cards about to explode? The information was out therebut fragmented across dozens of sources, some dating back to the late ’90s.

This Roland JV Guide is the article I wished existed when I started. I’ve consolidated everything I learned from countless hours of research, hands-on comparison between my own units, and deep dives into technical documentation into a single comprehensive resource. Whether you’re considering your first vintage Roland rompler, trying to decide between models, or figuring out how to keep your existing gear alive in 2026, this guide covers the full picture from the sonic differences between the JD, JV, and XV families to modern solutions like the Romulator and Wi-Fi expansion cards.

No more hunting through twenty browser tabs. Just one guide with everything you need to know.

The unmistakable sound of countless hit records from the 1990s and 2000s came from a family of rack-mount boxes that still command remarkable respect today. Roland’s JV, JD, and XV synthesizers defined an entire era of music production, appearing on everything from Britney Spears’ breakthrough debut to the atmospheric soundtracks of Metal Gear Solid. These instruments remain viable production tools in 2026, offering a distinctive sonic character that software recreations still struggle to fully capture.

The story begins in 1991 with the JD-800, peaks with the ubiquitous JV-1080 in 1994, and culminates with the XV-5080 in 2000. Understanding this evolution—and the subtle but significant differences between models—can help modern producers make informed decisions about whether vintage hardware, software emulations, or both belong in their setup.

From the JD-800’s sliders to the XV-5080’s sampling possibilities

Roland’s approach to digital synthesis evolved dramatically across these three families, with each generation building upon its predecessor while introducing new capabilities and, controversially, different sonic compromises.

The JD-800 arrived in 1991 as Roland’s response to criticism that digital synthesizers had become menu-diving exercises with no hands-on control. Its 59 sliders and buttons made programming immediate and intuitive, a radical departure from the era’s typical two-line LCD interfaces. The sound engine featured 108 waveforms at 16-bit resolution, processed through resonant filters that could self-oscillate with a distinctive “toothy” character. The rack-mount JD-990 followed in 1993, adding oscillator sync, ring modulation, and a superior modulation matrix, though it traded the iconic slider interface for a larger display.

The JV-80 launched the same year as the JD-800 but targeted a different market—musicians who needed a do-everything workstation rather than a sound design tool. When the JV-1080 emerged in 1994, it represented Roland’s most significant leap forward. This 2U rack module packed 448 waveforms, 64-voice polyphony, and 16-part multitimbral operation into a format that quickly became the film composer’s best friend. The core samples were developed by Roland’s R&D team in Culver City, California, with legendary sound designers Eric Persing and Ace Yukawa crafting many of the factory presets that would appear on countless recordings.

The JV-2080 refined the formula in 1997, adding a larger LCD display, eight expansion card slots (double the 1080’s four), and an additional effects processor. While the sound engine remained essentially identical, the improved interface made programming considerably more pleasant. The budget-conscious JV-1010 followed in 1999, cramming the JV-1080 engine into a half-rack format with the Session expansion content included.

Roland’s final evolution came with the XV-5080 in 2000, doubling polyphony to 128 voices and introducing 1,083 waveforms including content from the JD-990. Perhaps most significantly, the XV-5080 could load up to 128MB of user samples via SCSI, transforming it into a hybrid rompler/sampler. The XV-3080 offered the same sound engine without sampling capability, while the XV-5050 provided a budget-friendly entry point with USB connectivity.

Why sample rates and DACs matter more than specs suggest

The technical specifications tell only part of the story. Musicians consistently report that different models from the same family sound noticeably different, even when playing identical patches. Understanding why requires examining the often-overlooked details of sample rate, digital-to-analog conversion, and data compression.

The JD series operated at 44.1kHz sample rate with high-quality converters that produced remarkable stereo width and high-frequency detail. The JD-990 in particular has developed a reputation as perhaps Roland’s finest-sounding digital synthesizer, with converters that many engineers describe as having an almost analog smoothness.

The Super JV series (JV-1080, JV-2080, and XP workstations) dropped to 32kHz sample rates, which theoretically limited high-frequency content but contributed to a warmer, darker character that many producers find more mix-friendly. The JV-1080 specifically used NEC 18-bit DACs—three of them, where the similar XP-50 used only one—that impart a subtle coloration many users describe as “analog-like.” This isn’t mere nostalgia: waveform analysis reveals that each note on a JV-1080 exhibits slight variations, while later models produce perfectly identical waveforms with each trigger.

The XV series introduced mixed sample rates, combining legacy 32kHz content with new 44.1kHz waveforms. The XV-5050 in particular exhibits noticeable output compression that keeps levels consistently high, which some users interpret as the sound being “thinner” compared to the more dynamic JV-1080.

Perhaps most contentious is the issue of lossy compression. Evidence suggests that the Super JV series introduced a form of perceptual compression beyond the standard Adaptive DPCM encoding used in earlier Roland instruments. Spectral analysis comparing identical waveforms between JD and JV synthesizers reveals that certain frequency content simply disappears in the JV version—a phenomenon reminiscent of MP3 encoding. Whether this matters in a dense mix is debatable, but it explains why the JD-990 continues to command premium prices despite offering fewer waveforms and features than later models.

The sonic fingerprints: How these models actually sound different

Beyond specifications, the measurable sonic differences between these instruments reveal why experienced producers often express strong preferences for particular models. Understanding these characteristics helps explain why a JD-990 from 1993 can command higher prices than the technically superior XV-5080 from 2000.

The JD-990’s audiophile-grade conversion

The JD-990 employed 18-bit PCM61P digital-to-analog converters running at 44.1kHz—the same sample rate as commercial CDs. These Burr-Brown chips were considered premium components for the early 1990s, and their implementation in the JD-990 produced exceptionally wide stereo imaging and extended high-frequency response reaching beyond 22kHz.

Frequency analysis of white noise samples played from a JD-990 shows virtually flat response all the way to the Nyquist frequency with minimal rolloff. This translates to a “crystalline” quality in the upper registers that synthesizer programmers particularly value when creating bell tones, metallic textures, and high-frequency modulation effects. The JD-990’s filters also exhibit a distinctive sweet spot in their resonance behavior—they can push into self-oscillation without the harsh digital artifacts that plague lesser implementations.

The JV series warmth: 32kHz sample rates and converter character

When Roland designed the JV-1080, they made a deliberate trade-off: dropping to 32kHz sample rates while maintaining 18-bit conversion depth. This decision had profound sonic implications that weren’t immediately obvious from the specifications.

Operating at 32kHz means the Nyquist frequency sits at 16kHz rather than 22kHz. Any audio content above this point theoretically shouldn’t exist, but in reality, the anti-aliasing filters used in these units weren’t brick-wall designs. The result is a characteristic “mirror effect” where frequencies above 16kHz fold back down into the audible spectrum, creating subtle harmonic complexity that many engineers describe as “analog-like warmth.”

The specific DACs matter enormously. The JV-1080 used NEC uPD63200GS-E2 converters, while the JV-2080 employed Burr-Brown PCM69AU chips. Both are 18-bit designs, but users have reported subtle differences in character—the JV-1080 often described as slightly “darker” and more mix-friendly, while the JV-2080 presents as marginally cleaner and more forward. Direct A/B comparison recordings reveal these differences are real, though subtle enough that they might not survive the journey through a full mix.

The XP-30 stands as an outlier in the family, using a 24-bit AK4324 converter that should theoretically sound superior. However, implementation matters more than bit depth alone, and many users report the XP-30 sounds somewhat “thinner” than the JV-1080 despite its higher-resolution conversion. This may relate to the de-emphasis pin configuration or other circuit-level details.

XV series refinements and the compression debate

The XV-5080 operates at 44.1kHz for its newer content while maintaining backward compatibility with 32kHz waveforms from the JV/XP library. This mixed-rate architecture creates an interesting hybrid character—some patches benefit from extended frequency response while others retain the “vintage” quality of the earlier sample libraries.

However, the XV-5050 (and likely the XV-5080) introduced a permanent low-shelf filter around 30Hz that reduces bass energy compared to the JV-1080. While this might seem like a limitation, it actually helps prevent the mud and subsonic rumble that can plague digital synthesizers. The high-frequency response through the digital outputs is genuinely spectacular, particularly when routing directly into a DAW without passing through the analog output stage.

More controversial is the dynamic behavior. The XV-5050 appears to employ some form of output-stage compression that keeps levels more consistent. Patches with multiple oscillators beating against each other—particularly detuned pads and basses—lose some of their organic volume fluctuation compared to the same patches on a JV-1080. This “glued” quality works beautifully for electronic dance music where consistency is valued, but film composers working with evolving soundscapes may prefer the JV-1080’s more dynamic response.

The data compression mystery: DPCM and beyond

All of these Roland modules employ Adaptive Differential Pulse Code Modulation (DPCM) compression, which reduces 16-bit samples down to approximately 8 bits for ROM storage. This isn’t simple bit-reduction; instead, the system encodes the difference between consecutive samples rather than absolute values. Upon playback, dedicated DSP hardware expands the data back to 16-bit resolution in real-time.

The genius of this approach is that it achieves 2:1 to 4:1 compression ratios while preserving considerably more dynamic range than naive 8-bit conversion would provide. It’s why these instruments sound far more sophisticated than their 8-bit sample storage might suggest.

However, spectral analysis suggests the Super JV and XV series may employ an additional layer of perceptual compression beyond standard DPCM. When comparing identical waveforms between a JD-990 and an XV-5080, certain high-frequency content simply disappears in the XV version—not through filtering, but through apparent data reduction. The gaps appear in predictable patterns reminiscent of psychoacoustic compression algorithms, though nothing in Roland’s documentation acknowledges this.

Whether this “lossy” compression degrades the musical result is highly debatable. In isolated waveform playback through spectrum analyzers, the differences are measurable. In actual musical contexts with multiple instruments, effects processing, and mix dynamics, most engineers cannot reliably identify which synthesizer generated which track. The JD-990’s “complete” frequency content may be more theoretical than practical advantage.

Filter behavior: Where the magic happens

The JV/XV series inherited filter designs from the JD-990, but with important modifications. The JD-990’s resonant filter exhibits a particular “edgy” quality at high resonance settings that sound designers prize for creating aggressive bass and lead sounds. However, it also has a significant limitation: when resonance exceeds approximately 40% and filter key-tracking is set to maximum values, the filter can clip harshly if you play complex chords in certain frequency ranges.

The XV series addressed this by implementing greater dynamic headroom in the filter circuit and adding an oscillator gain control that allows pre-filter level reduction. This eliminated the clipping problem entirely—you can push XV filters to their extremes without distortion. The trade-off is that the XV filters sound marginally “polite” compared to the JD-990, which some users interpret as lacking character.

The JD-990’s filters also extend slightly higher in frequency range, contributing to what many describe as extra “sweetness” in the high end. The rest of the frequency response is nearly identical between JD and XV filters, but that extra extension matters when programming bell tones, percussive attacks, and filter sweeps that emphasize upper harmonics.

The anti-aliasing filter evolution

The original JV-80 used relatively primitive anti-aliasing filtering compared to later models. This weakness actually contributed to its sound character—weaker filters allowed more high-frequency “mirroring” to occur, which could create the illusion of additional harmonic content and openness.

The Super JV series (JV-1080, JV-2080, XP workstations) implemented superior anti-aliasing that more effectively suppressed these artifacts. Whether this is an improvement depends entirely on your perspective. For “clean” production, the better filtering is welcome. For producers seeking a vintage, slightly gritty character, the original JV-80’s approach has its appeal. This is one reason why some vintage synth enthusiasts still seek out JV-880 modules despite their more limited feature sets.

Real-world implications for producers

These technical differences manifest in practical ways:

For film and TV scoring: The JD-990’s superior dynamic range and extended frequency response make it ideal for evolving pads and soundscapes that need to breathe and change over time. The JV-1080’s darker character works beautifully for underscore that needs to sit behind dialogue without competing.

For electronic dance music: The XV-5050’s consistent output levels and forward presence deliver sounds that cut through dense mixes with minimal additional processing. The compression that some criticize as a limitation becomes an asset when you need every element to maintain its space.

For pop and R&B production: The JV-2080’s balanced character—slightly cleaner than the 1080 but warmer than the XV series—provides the versatility to handle everything from lush string arrangements to punchy synth bass without requiring multiple modules.

For experimental and sound design work: The JD-990’s oscillator sync, ring modulation, and superior modulation matrix make it the clear choice despite its higher price. The combination of clean conversion and flexible synthesis architecture enables sounds that the more limited JV/XV engines simply cannot produce.

The ultimate truth is that all of these instruments sound excellent in their intended contexts. The differences are real and measurable, but they’re also subtle enough that signal chain, effects processing, and mixing decisions will have far greater impact on your final results than which specific Roland module generated the initial sound. The “best” choice depends entirely on what kind of music you’re making and whether you value clinical accuracy or vintage character.

The expansion ecosystem that defined a decade of production

The SR-JV80 expansion board system became one of Roland’s most successful product strategies, eventually spawning 20 different cards covering everything from vintage synthesizers to world instruments. These cards plugged into dedicated slots and added both waveforms and complete patch libraries to the host synthesizer.

Key expansion boards that became production staples include:

• SR-JV80-02 Orchestral: Considered essential for film scoring, containing what many engineers still regard as some of the most beautiful digital string patches ever created
• SR-JV80-04 Vintage Synth: Recreations of classic analog synthesizers that remain surprisingly usable
• SR-JV80-06 Dance: The source of the “Reverse Hit” preset famously used throughout Max Martin’s Cheiron Studios productions
• SR-JV80-12 Hip Hop Collection: Became a staple of 1990s R&B production

The later SRX series offered higher-fidelity waveforms with improved sample rates and was compatible with the XV-5080, XV-3080, and subsequent Roland hardware including the Fantom series. Twelve SRX cards were produced, each containing substantially more content than the earlier SR-JV80 format.

Expansion slot counts varied significantly across models. The JV-1080 offered four SR-JV80 slots, the JV-2080 doubled this to eight, and the XV-5080 could accommodate both SR-JV80 and SRX cards—a significant advantage for producers wanting access to both libraries. The budget-oriented JV-1010 and XV-2020 offered only one slot each, limiting their expandability.

A critical warning for 2026 buyers: Roland Japan issued an official advisory in 2017 urging users to immediately stop using SR-JV80 expansion cards due to capacitor failure risks. The 100µF 6V capacitors used on many cards operate with almost no voltage margin and have been known to leak or even explode after 25+ years. Any expansion cards should be inspected and recapped before use, with appropriate 25V-rated replacements.

Why the JV-880 deserves attention in 2026

While much attention focuses on the JV-1080 and its successors, the JV-880 represents perhaps the most accessible gateway into Roland’s classic rompler sound. Released in 1992 as the rack-mount counterpart to the JV-80 keyboard, the JV-880 occupies a unique position in the family tree—and in today’s used market, it offers compelling value for producers on a budget. However, it comes with a significant limitation that buyers must understand before purchasing.

What makes the JV-880 different

The JV-880 predates the “Super JV” architecture that began with the JV-1080. From a technical standpoint, this means:

Filter differences:

• The JV-880 uses the original JV-80 filter design, not the JD-derived filter that appeared in Super JV models
• Resonance is controlled via “soft” and “hard” discrete settings rather than the continuous 0-127 resonance control of later models
• JV-80 soft resonance at maximum ≈ JV-1080 resonance at 44
• JV-80 hard resonance at maximum ≈ JV-1080 resonance at 88

Anti-aliasing filter:

• The Super JV series (JV-1080 onward) has a superior anti-aliasing filter compared to the JV-880
• The JV-880’s weaker anti-aliasing allows more “mirroring in higher frequencies” (aliasing artifacts above 16kHz)
• This can create additional harmonic content during transposition, particularly with rich textures
• Whether this is desirable depends on your sonic preferences and intended use

Waveforms and polyphony:

• The 880 features 221 waveforms (compared to the 1080’s 448)
• 28-voice polyphony (versus the 1080’s 64 voices)
• Both use 32kHz sample rate with 18-bit PCM69AP DACs (main outputs)

The original JV waveform set includes many classic sounds that remain musically useful, and 28 voices proves adequate for most production scenarios outside of dense orchestral arrangements.

The single expansion slot and its major limitation

Here’s where the JV-880 differs dramatically from later models: it has only ONE SR-JV80 expansion slot, not four like the JV-1080. But the limitation goes much deeper than just slot count.

The critical difference: Unlike the JV-1080/2080 where all expansion board patches are immediately accessible through the interface, the JV-880 requires you to manually LOAD patches from the expansion board into internal memory to use them. This is how it works:

1. The JV-880 has 64 user patch memory locations (plus 128 factory patches)
2. When you insert an expansion board like the SR-JV80-04 Vintage Synth (which contains 256 patches), you cannot directly access all 256 patches
3. You must manually load patches from the expansion board in groups of 64, which overwrites your internal user patches
4. To access different patches from the same expansion board, you must reload them, overwriting what you previously loaded

Example scenario: You install the Orchestral expansion board (256 patches). You can load patches 1-64, which overwrites your 64 user locations. If you want to access patches 65-128, you must reload that group, losing access to patches 1-64 unless you save them to a data card first.

This is fundamentally different from the JV-1080 and later models, where inserting an expansion board makes all its patches immediately accessible alongside the factory patches—no loading required.

Workarounds (expensive and clunky)

The only way to access more expansion patches simultaneously is to use Roland memory cards (M-256E or M-512E) to store additional patches. However:

• Original cards are rare and expensive
• Modern reproductions cost around $200—nearly the price of the JV-880 itself
• You still need to manually manage which patches are loaded where

Important: This limitation applies only to the JV-80 and JV-880. Starting with the JV-90, JV-1000, and all subsequent models (JV-1080, JV-2080, XV series), expansion board patches are directly accessible without manual loading.

Expansion board compatibility

All SR-JV80 expansion boards work with the JV-880, with one exception: the SR-JV80-97, 98, and 99 “Experience” boards have patch data incompatibility (though the waveforms can be accessed). However, given the patch loading limitation, this compatibility is less valuable than it initially appears.

The PCM data card situation

In addition to the single expansion board slot, the JV-880 has two front-panel card slots for PCM data cards (the older SO-PCM1 series). These also require manual patch loading with the same limitations. While some older Roland PCM cards can be interesting, they’re rare and expensive in 2026, making this feature more of a historical curiosity than a practical advantage.

The JV-880 also supports Roland M-256E and M-512E memory cards for storing user patches, but modern reproduction cards cost around $200—nearly the price of the unit itself—making this an expensive workaround for the expansion board limitations.

Sound quality considerations

The JV-880 employs 18-bit PCM69AP DACs for the main outputs (with different converters for the sub-outputs). These Burr-Brown chips sit in the same family as those used in the JV-2080, though implementation details differ. Users consistently report that the 880 has a warmer, more “analog” character than some later models, though whether this stems from the DACs, the filter design, or the weaker anti-aliasing is debatable.

The 32kHz sample rate means frequency content theoretically tops out at 16kHz, but the less aggressive filtering allows some of that characteristic “mirror effect” harmonic content that contributes to the vintage Roland sound.

What you give up compared to the JV-1080

The 880’s limitations compared to its more famous successor are significant:

• Half the polyphony (28 vs 64 voices)
• Fewer waveforms in the factory ROM (221 vs 448)
• Only one expansion slot instead of four
• Cannot directly access expansion board patches—must manually load them in groups of 64, overwriting user memory
• Smaller LCD display making patch editing more challenging
• No matrix control for modulation routing
• Different filter architecture (original JV rather than JD-derived)
• Older effects processor with fewer algorithms

The expansion board limitation alone is a dealbreaker for many users. If you’re considering the JV-880 specifically to use expansion boards, you should strongly consider spending the extra $100-150 for a JV-1080 instead, which eliminates this workflow nightmare entirely.

The pricing advantage

Here’s where the JV-880 becomes compelling: current market prices run $150-300, roughly half to two-thirds the cost of a JV-1080. For producers just beginning to explore vintage Roland hardware, or those on tight budgets, this price differential is meaningful.

eBay has become the primary marketplace for these units, with Japanese sellers often offering cleaner examples at the lower end of the price range. As with all vintage Roland gear, condition varies significantly—some units have been rack-mounted their entire lives and show minimal wear, while others bear the scars of decades of road use.

When the JV-880 is the right choice

Given its limitations, the 880 makes sense only for specific scenarios:

Budget-conscious producers who will use mainly factory sounds – If you plan to work primarily with the 221 built-in waveforms and factory patches without relying heavily on expansion boards, the 880 offers authentic Roland sounds at a lower price point

Those seeking the original JV character specifically – Sound designers and producers who specifically want that grittier, more “vintage” tone with the original filter design and weaker anti-aliasing for creative aliasing effects

Electronic music producers with simple patch needs – Where 28-voice polyphony is sufficient and you won’t need to juggle multiple expansion board patches in a single project

Collectors and enthusiasts – Who want to experience where the JV series began, complete with its quirks and workflow limitations

IMPORTANT: Do NOT buy a JV-880 if you’re planning to use it primarily with expansion boards. The patch loading limitation makes it impractical compared to spending just $100-150 more for a JV-1080, which gives you four expansion slots with all patches immediately accessible.

When to choose the JV-1080 instead (most people should)

You should spend the extra $100-200 for a JV-1080 if you:

• Plan to use ANY expansion boards seriously – This alone justifies the price difference. The JV-1080’s immediate access to all expansion patches versus the 880’s manual loading workflow is night and day
• Need 64-voice polyphony for dense orchestral or layered work
• Want the larger waveform library (448 vs 221) for more sonic variety
• Require four expansion slots instead of one
• Prefer the JD-derived filter’s cleaner character and greater control range
• Need the modulation matrix for complex programming
• Want the improved 2-line LCD display for easier patch editing

The JV-1080 costs only modestly more ($250-400 vs $150-300 for the 880) but offers double the polyphony, double the waveforms, four times the expansion slots, and—most critically—a completely different expansion board workflow that actually makes those slots usable.

Integration with modern workflows

The JV-880’s MIDI implementation remains solid, and it integrates easily with modern DAW setups. Computer-based editors like SoundDiver (though discontinued) or third-party alternatives can overcome the small display limitations for serious patch editing.

One practical advantage: the 880’s smaller 1U footprint makes it easier to fit into crowded studio racks compared to the 1080’s 2U format. For producers with limited rack space, this physical size difference can be decisive.

The verdict: A historical curiosity, not a recommended buy

The JV-880 represents an interesting piece of Roland history, but it’s difficult to recommend in 2026 given its limitations. At $150-250, it offers access to classic Roland sounds with the original JV filter character—but the single expansion slot with its clunky manual patch-loading workflow is a dealbreaker for most practical applications.

The math doesn’t add up: If you’re planning to use expansion boards (one of the main reasons to buy into the JV ecosystem), you’re looking at:

• JV-880: $200 + one SR-JV80 board ($100-200) = $300-400
• JV-1080: $250-400 with four immediately-usable expansion slots

For similar money, the JV-1080 offers:

• Double the polyphony
• Double the waveforms
• Four expansion slots instead of one
• All expansion patches instantly accessible without loading
• Better display and interface
• Modulation matrix

The 880 only makes sense if you:

• Specifically want the original JV filter character for sound design purposes
• Plan to work primarily with factory sounds (not expansion boards)
• Are collecting the family’s evolution and want the first rack-mount JV
• Find one exceptionally cheap (under $150)

For most producers, the JV-1080 at $250-400 is a far better investment. The small price premium buys you a dramatically more capable and usable instrument. The JV-880’s expansion board workflow alone—manually loading 64 patches at a time and overwriting user memory—makes it impractical for serious work with expansion content.

Where to find one (if you’re still interested)

eBay remains the primary source, with listings typically running 10-20 units at any given time. Japanese sellers often offer the best combination of price and condition, though shipping adds $50-80.

Reverb has fewer listings but sometimes better-documented condition and return policies. Prices tend slightly higher but with less risk.

Local classifieds (Craigslist, Facebook Marketplace) occasionally surface 880s, usually from weekend warrior musicians downsizing their gear. These can offer the best deals if you’re willing to inspect in person.

As with any 30+ year old instrument, thorough testing before purchase is essential. At minimum, verify:

• All voices trigger correctly (test with a simple patch across the entire keyboard)
• Display is legible (backlight failures are common)
• All buttons respond (tact switch failures are frequent)
• MIDI implementation works on all channels
• The expansion slot functions (test with a board if possible)

Final reality check on expansion boards

If a seller includes an expansion board with the JV-880, ask yourself: will you actually use it given the workflow? You’ll need to:

1. Insert the board
2. Press UTILITY > Load Patch Group
3. Select EXP (Expansion Board)
4. Choose which 64 patches to load (1st 64, 2nd 64, etc.)
5. Press ENTER—this overwrites your 64 user patches
6. To access different patches from the same board, repeat the process

Compare this to the JV-1080: insert board, done. All patches immediately accessible alongside factory patches.

The JV-880 may be the budget option in Roland’s rompler lineup, but the expansion board limitation makes it a poor value unless you’re specifically interested in the original JV filter character and plan to work mainly with factory sounds. For everyone else, save a bit longer and buy the JV-1080—you’ll thank yourself the first time you want to use an expansion board.

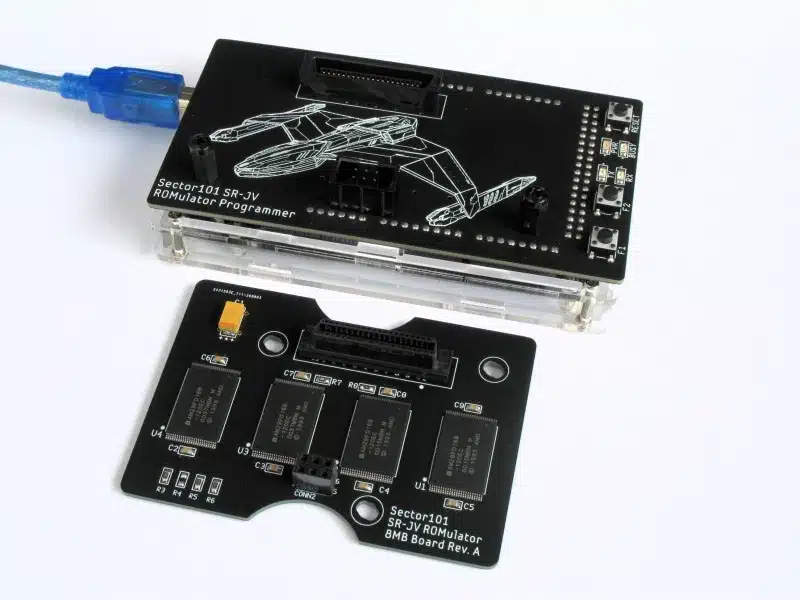

The Sector101 Romulator: A Modern Solution for Vintage Expansion Cards

Given Roland’s 2017 advisory warning users to stop using SR-JV80 expansion cards due to capacitor failure risks, and the reality that these 25-30 year old cards are dying, the Sector101 SR-JV Romulator has emerged as an essential tool for preserving and expanding your Roland synthesizer’s capabilities.

What is the Romulator?

The Romulator is an 8MB programmable SR-JV80-compatible expansion card that can be loaded with any SR-JV80 expansion board data. Think of it as a rewritable expansion card that can become any of the 20 SR-JV80 boards, or even hold custom waveform data.

Key features:

• Electrically compatible with all SR-JV80 slots (safe to fill all slots with Romulators)
• Can backup your original SR-JV80 cards before they fail
• Rewritable—change which expansion board data it contains at any time
• Supports custom waveform creation via community-developed tools
• Works with all Roland synths that accept SR-JV80 cards

Why the Romulator matters in 2026

1. Capacitor failure preservation Original SR-JV80 cards are time bombs. The 100µF 6V capacitors operate at their voltage limit and have been failing catastrophically. The Romulator lets you:

• Back up your cards before they die
• Continue using the waveforms and patches without risk
• Preserve rare or expensive cards ($100-250 each) as backups

2. Cost-effective expansion Rather than spending $100-250 per SR-JV80 card on the used market, you can:

• Buy the Romulator + Programmer unit (£130/$170)
• Load any SR-JV80 card data you need
• Swap between different expansion boards by reprogramming
• Build a library of multiple Romulators for different boards

3. JV-880/JV-80 workflow improvement For JV-880 and JV-80 users stuck with one expansion slot and manual patch loading:

• Keep multiple Romulators programmed with different expansion boards
• Physically swap cards instead of reloading patches
• Much faster than the manual patch loading workflow
• Still cheaper than buying original cards

Compatible Roland synthesizers

The Romulator works with every Roland synth that accepts SR-JV80 cards:

JV Series:

• JV-80, JV-90, JV-880, JV-1000 (1 slot each)
• JV-1010 (1 slot)
• JV-1080 (4 slots)
• JV-2080 (8 slots)

XP Series:

• XP-30 (2 slots)
• XP-50, XP-60, XP-80 (4 slots each)

XV Series:

• XV-88 (2 slots)
• XV-3080 (4 slots)
• XV-5080 (4 slots)

Other:

• JD-990 (1 slot)
• Fantom FA-76 (1 slot)

How it works: The programmer unit

The Romulator system consists of two components:

The Romulator card (£58/$75 each):

• The actual expansion card that goes in your synth
• Holds 8MB of waveform data (same as SR-JV80 cards)
• Rewritable via the programmer unit

The Programmer unit (included with starter kit):

• USB device that connects to your computer
• Reads, writes, and erases Romulator cards
• Can backup original SR-JV80 cards
• Controlled via terminal emulator software (TeraTerm on Windows, alternatives for Mac/Linux)
• Powered by USB—no external power supply needed

Using the programmer

The programmer unit is controlled through a terminal emulator application:

• Windows: TeraTerm (free)
• Mac: Serial Terminal Emulator by Decisive Tactics
• Linux: MiniCon Terminal Emulator

You enter text commands through the keyboard and the programmer responds. For example:

• CD command: Identifies what type of card is installed
• Read commands: Back up SR-JV80 cards to computer
• Write commands: Program Romulator with card data
• Erase commands: Clear Romulator for new data

The complete user manual and software pack are available as free downloads from Sector101’s website. Important: You should download and read the manual before purchasing to ensure you’re comfortable with the technical requirements.

Practical workflow examples

Scenario 1: Backing up your collection You own a JV-2080 with 8 original SR-JV80 cards:

1. Buy Romulator + Programmer starter kit: £130
2. Buy 7 additional Romulator cards: 7 × £58 = £406
3. Total investment: £536 (~$700)
4. Back up all 8 cards to computer files (.BIN format)
5. Program each Romulator with one expansion board
6. Install Romulators in synth, store originals safely

Scenario 2: Budget expansion for JV-1080 You want access to multiple expansion boards but can’t afford $800-1,200 for 4 original cards:

1. Buy starter kit (1 card + programmer): £130
2. Buy 3 additional Romulator cards: 3 × £58 = £174
3. Total: £304 (~$395)
4. Source SR-JV80 card images (study library or backup from borrowed cards)
5. Program each Romulator with a different expansion board
6. Install all 4 in your JV-1080

Scenario 3: JV-880 expansion board swapping Your JV-880 has one slot and you want to use different expansion boards:

1. Buy starter kit + 2 additional cards: £130 + (2 × £58) = £246
2. Program each with different expansion boards (Orchestral, Vintage Synth, Dance)
3. Physically swap Romulators based on project needs
4. Each swap: 30 seconds vs 5+ minutes of manual patch loading
5. Much more practical workflow than single-slot limitation

Custom waveform creation

The Romulator’s development goal is to unlock the SR-JV data format and enable custom waveform creation. This allows experimental waveform data to be used in Roland units.

Python Blue’s SR-JV ROM Hacking Kit:

• Python-based toolkit available on GitHub
• Creates SR-JV Romulator .BIN images from new sample sets
• Requires Python to be installed on your computer
• YouTube tutorials available showing the process

This opens possibilities that never existed with original cards:

• Create expansion boards using your own samples
• Combine waveforms from multiple SR-JV80 boards
• Experimental sound design with custom data
• Tailor expansion boards to specific production needs

Card image library

Sector101 maintains a card image library that can be used to study SR-JV sample and patch data formats. However:

IMPORTANT NOTE: Sector101 does NOT supply Romulator cards pre-programmed with card images. You must:

• Program cards yourself using the programmer unit
• Use the Romulator to backup SR-JV80 cards you own
• Create custom images using the ROM hacking kit
• Access the study library for research purposes

Pricing breakdown (2026)

Starter kits (card + programmer):

• 1 Romulator card + Programmer: £130 (UK) / £150 (International)
• 2 Romulator cards + Programmer: £199 (UK) / £211 (International)

Additional Romulator cards:

• 1 card: £65 (UK) / £73 (International)
• 2 cards: £126 (UK) / £131 (International)
• 3 cards: £184 (UK) / £191 (International)

Shipping:

• UK: Recorded Delivery (included in price)
• International: Tracked & Insured (included in price)
• Check Terms & Conditions for shipping restrictions

Compare to original SR-JV80 cards:

• Common boards: $100-150
• Popular boards (Orchestral, Vintage Synth): $150-200
• Rare boards: $200-250+

Break-even: If you need 2+ expansion boards, the Romulator system pays for itself while providing flexibility and backup security.

Important technical considerations

Read the manual first: Before purchasing, download the free user manual from Sector101.co.uk. Ensure you understand:

• Terminal emulator setup (TeraTerm, etc.)
• USB driver installation for your operating system
• Command structure for programming cards
• File management and card images

Computer requirements:

• Windows, Mac OS X, or Linux computer
• USB port
• Terminal emulator software (free)
• Ability to install USB drivers
• Basic command-line comfort

Programmer compatibility warning:

• Newer Romulator cards only work with later programmer units
• Cards will NOT work with Programmers RMPGM-001 through RMPGM-098
• If you have an early programmer and need cards, contact Sector101 about upgrades or compatible cards

The verdict: Essential insurance for SR-JV80 users

Given the capacitor failure crisis affecting all SR-JV80 expansion boards, the Romulator represents essential insurance rather than optional accessory. Whether you own original cards that need backing up, or want to expand your Roland synth affordably, the Romulator system offers compelling value.

You should get a Romulator if you:

• Own original SR-JV80 cards worth preserving ($100-250 each)
• Want multiple expansion boards without spending $800-1,200
• Use a JV-880/JV-80 and want easier expansion board access
• Are interested in custom waveform creation and sound design
• Need backup insurance before your cards fail

Consider alternatives if you:

• Only need one expansion board and can find it cheaply
• Aren’t comfortable with command-line interfaces
• Prefer plug-and-play solutions without technical setup
• Primarily use software (Roland Cloud) instead of hardware

At £130-150 (~$170-195) for the starter kit, the Romulator costs about the same as one original Orchestral or Vintage Synth expansion board, while offering unlimited expansion possibilities and backup security. In 2026, with original SR-JV80 cards increasingly unreliable and expensive, the Romulator isn’t just a good idea—it’s practically mandatory for anyone serious about using Roland’s expansion ecosystem.

Where to buy

Official source:

• www.sector101.co.uk
• Based in United Kingdom
• PayPal secure checkout
• International tracked & insured shipping included

Before ordering:

1. Download and read the complete user manual (free PDF)
2. Check international shipping availability (see Terms & Conditions Section 6)
3. Verify your PayPal account email and shipping address are current
4. Ensure you understand the programmer setup requirements
5. Decide how many Romulator cards you’ll need

Shipping restrictions: Sector101 does NOT ship to all international destinations. Check the Terms & Conditions on their website for the complete list of countries they can ship to before ordering.

Real-world value in 2026

The Romulator has effectively become the standard solution for SR-JV80 expansion in the vintage Roland community. While it requires more technical engagement than simply plugging in an original card, the benefits far outweigh the learning curve:

• Preservation: Your expensive SR-JV80 collection is backed up before failure
• Flexibility: Switch between expansion boards by reprogramming or swapping cards
• Cost savings: Access multiple boards for fraction of vintage card prices
• Innovation: Create custom expansion boards impossible with original hardware
• Peace of mind: No more worrying about catastrophic capacitor failures

For anyone using JV/JD/XV synthesizers with expansion capabilities, the Romulator represents one of the best investments you can make. The capacitor issue isn’t going away—it’s only getting worse as cards age. Having backups and modern alternatives ensures your Roland synthesizer investment continues producing music for years to come.

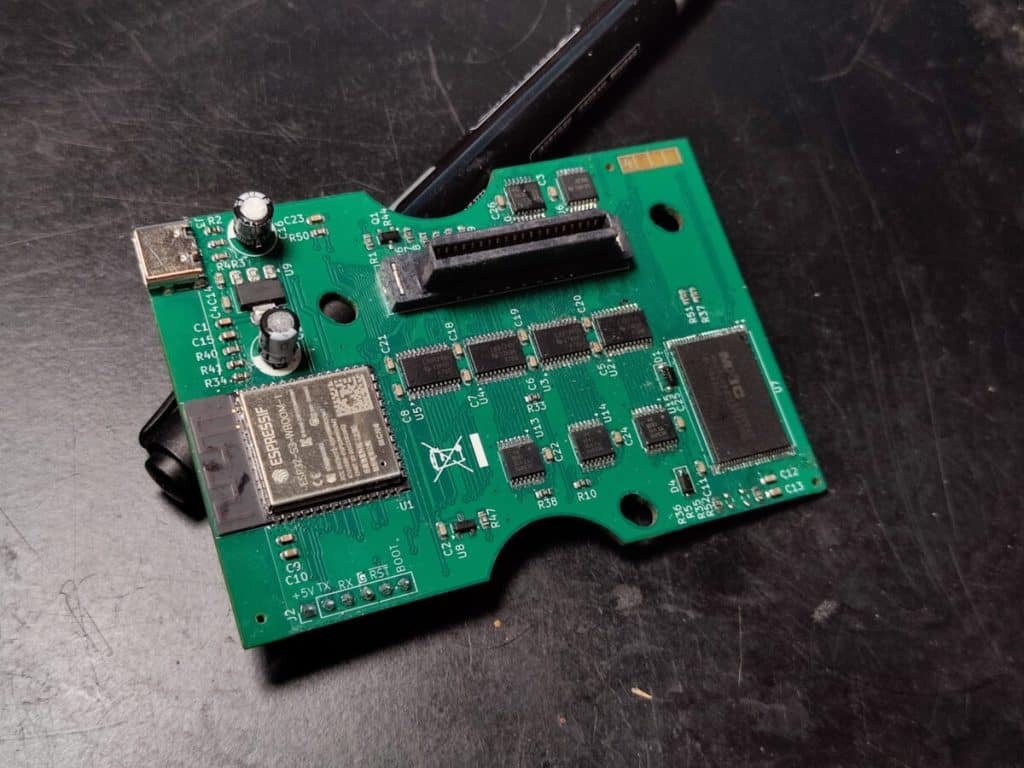

The SR-JV Wi-Fi Card: A Budget Alternative with Built-In Programming

While the Sector101 Romulator focuses on being a faithful reproduction of original SR-JV80 cards with external programming, Connor Zheng’s SR-JV Wi-Fi card takes a radically different approach: it incorporates an ESP32 wireless microcontroller directly on the expansion board, allowing you to program it via Wi-Fi while it’s still installed in your synthesizer.

This convenience comes with tradeoffs higher power consumption, compatibility limitations in certain slots, and potential RF interference—but at $71 USD per card, it represents an extremely affordable entry point into programmable expansion boards.

What makes the Wi-Fi card different

Core technology:

• 8MB flash memory (same capacity as SR-JV80 cards)
• ESP32 wireless microcontroller built directly onto the card
• Wi-Fi access point for wireless programming and configuration
• Bluetooth LE for remote wake-up functionality
• Web-based interface accessible at 192.168.4.1 when connected

The key advantage: You connect to the card’s Wi-Fi hotspot, open a browser, and upload new ROM images without removing the card from your synthesizer. No external programmer needed.

The key tradeoffs: Higher power consumption (150-200mA vs essentially zero for passive cards), compatibility issues in some slots, and potential RF interference that may require disabling the wireless when not in use.

Compatibility matrix: Where it works and where it doesn’t

The Wi-Fi card is not universally compatible with all SR-JV80 slots due to signal propagation delays in the address encoding circuitry. Here’s what works with current hardware (Rev 1.2):

Fully compatible (all slots work):

• JV-80, JV-880, JV-1010 ✓
• JV-1080, JV-2080 ✓
• XV-3080, XV-5080 ✓
• FA-76 (with limitation: can’t mix waveforms from this card + internal/SRX in same patch)

Partial compatibility:

• XP-50, XP-60, XP-80: Slots A & B only – Slots C & D will NOT work
• JV-90, JV-1000: Some users report issues

Special requirements:

• JD-990: Works, but wireless must be turned off to eliminate RF interference with audio

Not tested but should work:

• XP-30, XV-88

Why the slot C/D limitation exists

The Wi-Fi card uses additional logic chips for address encoding and bus control, which introduces propagation delays. In XP-50/60/80 slots C and D, the timing is too tight and the card cannot respond fast enough. This is a fundamental hardware limitation—if you need all four slots, you must use the Sector101 Romulator instead.

Power consumption and multiple card usage

This is critical: Installing multiple Wi-Fi cards without proper configuration can damage your synthesizer’s power supply.

Power consumption by mode:

• Wi-Fi active: 150-200mA (during programming: 200mA+)
• Bluetooth advertising only: 30-80mA average
• Wireless all off: Minimal (comparable to passive cards)

Multiple card guidelines: Installing 2-4 cards with Wi-Fi active simultaneously can draw 600-800mA, which will:

• Overheat the synthesizer’s 5V power supply
• Trigger overcurrent protection
• Potentially damage the power supply permanently

Solution: Configure Wi-Fi power-off mode on cards you’re not actively programming. The card provides three power modes:

1. Always On: Highest power. Wi-Fi always accessible. Use only for single card installations.
2. Wi-Fi Off with BLE Wakeup: Medium power (30-80mA). Wi-Fi turns on when triggered by Bluetooth pairing attempt or button press. Suitable for multiple cards in closed chassis.
3. Wireless All Off: Lowest power. Both Wi-Fi and Bluetooth disabled. Wi-Fi activatable by button only. Most conservative mode for multiple cards.

How to use the Wi-Fi programming interface

Step 1: Connect to the card

1. Power up your synthesizer (or power the card via USB Type-C for bench testing)
2. Look for Wi-Fi network named “SR-JV-XXXXXX” (last 6 digits of MAC address)
3. Default: no password required
4. Connect to this network

Step 2: Access the web interface

1. Open browser and navigate to http://192.168.4.1
2. You’ll see links for ROM management, configuration, and firmware updates

Step 3: Program a ROM image

1. Click “Erase Flash” (takes ~1 minute)
2. After erase completes, click “Choose File” and select your .BIN image
3. Click “Upload” to program the flash (8MB takes ~6 minutes)
4. Do not close browser or disconnect Wi-Fi during upload
5. Power cycle your synthesizer to use the new ROM

Important notes:

• Change the synth’s current patch to something that doesn’t use the expansion board before erasing/programming
• Stay in the browser tab during upload—don’t switch tabs or let your computer sleep
• After programming, power cycle the synth (soft restart not enough)
• If upload fails, it’s usually due to Wi-Fi interruption or browser power saving—try again

Bluetooth LE wake-up feature

For cards configured in “Wi-Fi Off with BLE Wakeup” mode, you can activate Wi-Fi remotely using your smartphone:

On iOS/Android:

1. Go to Bluetooth settings
2. Select “Pair New Device”
3. Find device named same as the Wi-Fi SSID (default: SR-JV-XXXXXX)
4. Tap to initiate pairing
5. Pairing will fail by design—this is normal
6. Wi-Fi will activate and you can connect normally

This eliminates the need for a physical button when the synth is in a closed rack case. For iOS devices, firmware 1.00 or later is required.

Remote button option

The board includes a Remote Button Header where you can solder your own normally-open button switch. This is useful for rack-mounted synths where the onboard button is inaccessible. Wire a momentary switch to this header and mount it on your rack panel for easy access.

Configuration options

Wi-Fi credentials:

• Change SSID (default: SR-JV-XXXXXX)
• Set password (8-32 characters, optional but recommended)
• Restart required for changes to take effect

Wi-Fi channel selection (FW 1.10+):

• Default: Channel 11 (Channel 1 in pre-1.10 firmware)
• Recommended: 1, 6, or 11 to avoid interference
• Useful if you have multiple cards or other Wi-Fi devices nearby

Hidden SSID (FW 1.10+):

• Hide the Wi-Fi network from scans
• You can still connect if you know the SSID
• Useful for security in public/shared spaces

Over-the-air (OTA) firmware updates

The card supports wireless firmware updates without removing it from the synth:

1. Download new firmware .BIN file
2. Connect to card’s Wi-Fi
3. Open web interface → Firmware Update
4. Select the .BIN file
5. Upload and wait for 100% completion
6. Card automatically reboots to new firmware

Safety features:

• Invalid firmware files are rejected
• If new firmware won’t boot, card automatically reverts to working version
• ESP32’s internal bootrom prevents true “bricking”
• In worst case, can be reflashed via production headers with USB-TTL adapter

When to choose Wi-Fi card vs Romulator

Choose the Wi-Fi card if you:

• Want the most affordable solution ($6 per card vs £58 for Romulator)
• Only need slots A & B on XP-50/60/80 (or have a synth with full compatibility)
• Like the convenience of programming without removing cards
• Can manage power consumption with Wi-Fi off modes
• Want open-source hardware you can modify/fork

Choose the Romulator if you:

• Need to use XP-50/60/80 slots C & D
• Need to mix SR-JV + internal/SRX waveforms in same patch on FA-76
• Require maximum reliability for critical applications (live performance)
• Want minimum stress on synthesizer power supply
• Prefer electrically passive design (no power consumption issues)
• Don’t want to deal with RF interference concerns

Consider both: Some users keep Wi-Fi cards for experimentation and testing, then copy favorite configurations to Romulators for permanent installation. At $6 per Wi-Fi card, you can afford to experiment.

RF interference considerations

The ESP32’s wireless systems can introduce RF interference into audio circuits, particularly in older synthesizers with inadequate shielding. Symptoms include:

• Audible noise in output (buzzing, whining)
• Pops and clicks (usually indicates corrupted data read, not RF interference)

Solutions:

1. Configure “Wireless All Off” mode when not actively programming
2. Ensure synthesizer’s power supply capacitors are healthy (recap if needed)
3. Clean expansion slot contacts with contact cleaner
4. Use shortest possible Wi-Fi programming sessions

The JD-990 in particular requires wireless off to prevent interference. This is a known compatibility note, not a defect.

Hardware revisions and improvements

HW Rev 1.2 (current production):

• Changed address encoding to 74AHC86/74LV86 (reduced delay)
• Changed CE control to 4x 74LVC1G125 (reduced delay)
• Full compatibility with JV-80/880 and most other models
• Still incompatible with XP-50/60/80 slots C & D (fundamental limitation)

HW Rev 1.0 (Lot 1, datecode 2506):

• Required workarounds for JV-80/880 (boot in test mode or use specific button combinations)
• Incompatible with XP-50/60/80 slots C & D
• If you have an old Rev 1.0 card, hardware modification available at ddzheng.cc

Open-source ecosystem

Unlike the Romulator, the Wi-Fi card is fully open-source:

Hardware repository:

• https://github.com/connorzheng97/srjv
• 4-layer FR4 PCB design files
• Schematic and layout
• Bill of materials

Firmware repository:

• https://github.com/connorzheng97/srjv-fw
• ESP32 Arduino-based firmware
• Customizable for specific needs
• Development via ESP32 production headers

Community tools:

• PythonBlue’s SRJV Authoring Tool
• Chab’s fork with improvements
• Shared ROM image library

This open-source approach means you can modify the design, fix issues yourself, or create custom firmware variants for specific workflows.

Pricing and availability

Current pricing (as of late 2025):

• $6 USD per card including base shipping and VAT
• Shipping: 3-10 days via Yuntu Express (air) from China
• Worldwide shipping available (excluding conflict zones)

Payment:

• PayPal only (secure, doesn’t share card details with seller)
• Phone number required for certain destinations (see website)
• Cannot ship pre-programmed cards (you program them yourself)

Purchase from:

• Official website: www.ddzheng.cc
• Contact: admin@ddzheng.cc for purchase issues

Return/refund policy:

• Faulty units: Refund or exchange available
• Incompatibility with untested host: Refund available
• Changed mind: No refund (destroy card and provide evidence)

The $71 price point changes everything

At $71 per card, the Wi-Fi card represents a fundamentally different value proposition than the Romulator:

Romulator ecosystem:

• Programmer + 1 card: £130 (~$170)
• Additional cards: £58 (~$75) each
• Four cards total: ~$395

Wi-Fi card ecosystem:

• Four cards: $284 total
• No programmer needed (built-in via Wi-Fi)
• Same ROM capacity and functionality

The tradeoff is compatibility limitations and power management requirements, but for compatible synths (JV-1080, JV-2080, XV-series, etc.), the Wi-Fi card offers incredible value.

Practical usage scenarios

Scenario 1: JV-1080 with 4 Wi-Fi cards

• Total cost: $284 for four cards
• Configure all four in “Wireless All Off” mode
• When you need to reprogram card in slot A:
  • Press button to wake Wi-Fi
  • Connect and upload new ROM
  • Power cycle synth
  • Card returns to wireless off automatically
• Other three cards remain in low-power mode

Scenario 2: JV-880 single-slot optimization

• One Wi-Fi card
• Change out the expansions via Wi-Fi comfortably

Scenario 3: Sound designer’s experimentation kit

• Buy 2-3 Wi-Fi cards
• Use PythonBlue’s authoring tool to create custom ROMs
• Test different sample sets rapidly
• Iterate on waveform designs
• Copy successful experiments to Romulator for permanent installation

Important technical notes

Phone number requirement: For shipping to certain countries (including USA, Canada, Brazil, Singapore, UAE, and others), you must provide a phone number. This is an express shipping requirement, not shared with third parties except the courier.

Packaging materials: May receive packaging with “Yanyu” or “StrictFish” markings, or shipment by SA1 Technology Co., Ltd. These are affiliated companies—not scam operations. All packages are recorded before shipment.

Turnaround time:

• Order confirmation: Within 24 hours
• Handling time: 3-7 days before shipping
• Bulk shipments sent 2-3x per week
• Tracking info updated in PayPal

No pre-programmed cards: The seller cannot and will not ship cards pre-programmed with ROM images. You must program them yourself after receiving.

The verdict: Incredible value for compatible setups

The SR-JV Wi-Fi card represents one of the best values in the vintage Roland ecosystem—if your setup is compatible. At $6 per card versus $75+ for Romulators or $100-250 for original SR-JV80 cards, the economics are compelling.

Best use cases:

• JV-1080, JV-2080 owners wanting multiple expansion boards
• XV-3080/5080 owners on a budget
• Sound designers experimenting with custom waveforms
• JV-880 owners wanting to swap expansion content easily
• Anyone comfortable managing power modes and RF interference

Avoid if you:

• Need XP-50/60/80 slots C or D
• Require mixing SR-JV + internal waveforms on FA-76
• Want plug-and-play simplicity without configuration
• Need guaranteed reliability for live performance
• Prefer passive, zero-power-consumption solutions

Resources and community

Official resources:

• Website: www.ddzheng.cc
• Hardware GitHub: github.com/connorzheng97/srjv
• Firmware GitHub: github.com/connorzheng97/srjv-fw
• ROM image library (Google Drive link on website)

Community tools:

• PythonBlue’s SRJV Authoring Tool
• Gearspace discussion thread

A tale of two philosophies

The Romulator and Wi-Fi card represent different design philosophies:

Romulator: Maximum compatibility and reliability through faithful hardware reproduction. Higher cost reflects quality engineering and proven compatibility.

Wi-Fi card: Maximum convenience and affordability through modern wireless technology. Lower cost reflects different design priorities and compatibility tradeoffs.

Neither is universally “better”—they serve different needs. At $6 versus £130 for the initial investment, many users start with Wi-Fi cards and add Romulators later for slots/situations where the Wi-Fi card has limitations.

For budget-conscious producers with compatible synthesizers, the Wi-Fi card has democratized access to programmable expansion boards in a way that wasn’t possible before. That $6 price point means you can afford to experiment, learn, and build a collection without significant financial risk.

The fact that it’s fully open-source means the community can improve it, fix issues, and adapt it for specific needs—a significant advantage for technically-minded users who want to understand and potentially modify their tools.

In 2026, with original SR-JV80 cards dying from capacitor failures and becoming increasingly expensive, having affordable programmable alternatives—whether Romulator or Wi-Fi card—has become essential for keeping these classic synthesizers musically productive.

The sound that defined mainstream pop, trance, and video game music

These synthesizers didn’t just appear in professional studios—they shaped the sonic identity of entire genres during their heyday. The JV-1080 in particular became so ubiquitous that Roland has claimed it is the most-used sound module in history.

Max Martin and Cheiron Studios built their signature sound around the JV series, with the distinctive layered production of Britney Spears’ “…Baby One More Time,” Backstreet Boys’ “I Want It That Way,” and *NSYNC’s “It’s Gonna Be Me” all bearing the fingerprints of JV patches and expansion boards. The combination of orchestral stabs, reversed effects, and precisely programmed synth layers became a template that defined turn-of-the-millennium pop.

In electronic music, Faithless used the JV-1080 extensively for the glacial pads and atmospheric textures that characterized “Insomnia” and “Salva Mea.” The drum and bass scene embraced these modules enthusiastically, with LTJ Bukem and Photek both relying on JV-1080s and JV-2080s for the lush, jazzy soundscapes that defined intelligent drum and bass.

The JD-800’s hands-on interface made it a favorite of progressive rock keyboardists. Genesis featured it prominently on “We Can’t Dance,” with the factory preset “Hearts of Space” appearing on “Hold On My Heart.” Prince owned at least three JD-800s at Paisley Park, using them across albums from “Diamonds & Pearls” through “Rave Un2 the Joy Fantastic.” Rick Wakeman of Yes praised it as “the first digital one that reminded me of the early days, plenty of knobs and sliders.”

Video game composers standardized on the JV series throughout the late 1990s. The atmospheric scores for Metal Gear Solid, Resident Evil 2 and 3, and the Tomb Raider series all emerged from JV-1080s and JV-2080s. Rare Ltd. composers working on Nintendo projects commonly used JV-1080s with Orchestral and World expansion boards. The distinctive sound of these games—that particular combination of cinematic strings and synthetic textures—owes much to the character of these Roland modules.

More recently, Tame Impala’s Kevin Parker has used the JV-1080 on “Currents,” describing its sound as “romantically nostalgic.” The 1975 confirmed using a JV-1080 on their 2022 album “Being Funny in a Foreign Language,” demonstrating that these vintage modules remain relevant to contemporary production.

Roland Cloud and Zenology bring these sounds to your DAW

Roland has progressively made their classic rompler sounds available through software, though the recreations come with both advantages and compromises compared to the original hardware.

Roland Cloud offers dedicated plugins recreating the JV-1080, XV-5080, and JD-800, available either through subscription ($199/year for Ultimate access) or as lifetime purchases ($129-149 each). The JV-1080 and XV-5080 plugins are actually based on the same underlying engine—the XV-5080’s PCM library—with 1,083 waveforms and 78 multi-effects. They share the modern Fantom-derived effects engine rather than the original hardware’s effects processors.

Zenology, Roland’s ZEN-Core-based platform, consolidates much of this content more efficiently. The $29/year Core subscription provides access to essentially all JV/XV/SRX sounds, while Zenology Pro ($229 lifetime) adds the JD-800 Model Expansion alongside other classic recreations. For producers primarily wanting access to these sounds without hardware maintenance concerns, Zenology represents the most cost-effective approach.

The software versions sound excellent and capture the essential character of the originals, but they are not perfect recreations. Notable differences include the absence of DAC coloration—the characteristic warmth and subtle variation that hardware users prize is not emulated. The filter behavior differs subtly, with the JD-800 plugin’s resonant peak reportedly measuring about 1kHz lower than the original hardware. The software also lacks certain hardware features: the XV-5080 plugin cannot load user samples, eliminating one of the original’s key advantages.

User consensus suggests that for most production work, the plugins are more than adequate. However, for producers specifically seeking the hardware’s specific character, the original units remain irreplaceable.

The Integra-7, while discontinued, represents Roland’s most comprehensive hardware solution for legacy sounds. It includes all XV-5080 patches, all 12 SRX expansion boards (loadable four at a time), and over 6,000 total sounds. Blind testing has shown most listeners cannot distinguish between Integra-7 and XV-5080 playback, though the effects engines differ.

What these instruments cost in today’s market

Market values for these synthesizers have remained relatively stable, with gradual appreciation driven by continuing demand from producers and collectors. The vintage synthesizer market overall is projected to grow at 7.8% annually through 2033, though Roland’s digital units remain more affordable than sought-after analog instruments.

The JD-800 commands the highest prices at $800-1,800+, with clean examples lacking the infamous “red goo” problem (degraded epoxy in the keybed) at the upper end. The JD-990 rack module sells for $1,000-2,000+, with professionally serviced units including warranty fetching premium prices.

JV series modules remain remarkably affordable given their capabilities. JV-1080s typically sell for $200-400, while JV-2080s command $250-450 thanks to their superior display and additional expansion slots. The half-rack JV-1010 represents the best entry point at just $75-175, offering the same sound engine as its larger siblings with the Session expansion included.

XV-5080s have appreciated somewhat, now selling for $450-900 depending on condition and included expansion cards. The XV-5050 remains a bargain at $200-350, while the XV-3080 falls between at $350-550. The keyboard versions (XV-88, XP-80) typically sell for $300-650 depending on model and condition.

XP workstations offer the JV sound engine with integrated sequencing. XP-80s sell for $300-500, XP-60s for $250-400, and XP-50s for $200-350. These units suffer from the same “red glue syndrome” affecting JD-800 keybeds, so condition matters significantly.

Expansion cards add substantial value—SR-JV80 boards sell for $50-250 depending on popularity, while SRX cards command $130-250 each. Buying a module with desirable expansion cards already installed often proves more economical than acquiring them separately.

Japan remains the best source for clean units, typically 15-20% cheaper than North American prices. Shipping runs $40-80 but condition is usually excellent.

Maintenance realities and what to inspect before buying

These 25-30 year old instruments require informed maintenance, and understanding common failure points can save significant expense and frustration.

Capacitor degradation represents the most critical concern. The SR-JV80 expansion cards are particularly problematic—Roland’s 2017 advisory warning users to cease use immediately wasn’t an overreaction. The 100µF 6V capacitors on these cards operate at their voltage limit and have failed catastrophically in some cases. Replacement capacitors cost only $1-5 per card, and professional recapping services charge roughly $7 per card in bulk. Any expansion cards should be considered suspect until inspected.

The synthesizers themselves use more reliable through-hole capacitors in most cases, though the XV-5080’s mainboard contains 23 SMD capacitors that may eventually require attention. JD-800 and JD-990 units approaching 30+ years old should have power supply capacitors inspected and likely replaced.

Display failures affect many units, with aging CCFL backlights becoming dim or failing entirely. Fortunately, LED-backlit replacement LCDs are now readily available for approximately $40-100 and install without soldering on most models. The same LCD fits the JV-2080, XV-5080, JD-990, XP-60, and XP-80.

Backup batteries (CR2032 coin cells in most models) typically need replacement after 20+ years. Symptoms of a dying battery include “Battery Low” warnings, lost patches after power cycling, and garbled displays. Always back up patches via SysEx before replacement, as the unit will require a factory reset afterward.

Tact switch failures cause unresponsive or intermittent buttons. DeoxIT contact cleaner can restore function temporarily, but replacement switches are available from parts suppliers for approximately $1-2 each. The JV-1080’s rotary encoder presents a particular challenge, as it uses a non-standard pulse switch that’s difficult to source.

Power supply voltage deserves special attention when buying internationally. These units are NOT auto-switching—using incorrect voltage will cause damage. Japanese units require 100V, European units 230V, and North American units 117V. The JD-800 has an internal voltage switch, but most other models require either a matching power supply board or an external step-down transformer.

Choosing the right model for your production needs

For producers considering vintage Roland hardware, the best choice depends on specific priorities and budget.

For maximum value and versatility: The JV-1080 remains the sweet spot at $200-400. Its distinctive DAC character, four expansion slots, and rock-solid reliability make it the go-to recommendation for producers wanting to experience these classic sounds affordably. The JV-2080 offers improved ergonomics and four additional expansion slots for roughly $50-100 more.

For the finest sound quality: The JD-990 delivers what many consider Roland’s best-ever digital audio path, with converters that produce superior stereo imaging and high-frequency detail. Its modulation matrix and oscillator sync capabilities make it a more capable sound design tool than the JV series, though it lacks expansion card compatibility with the full SR-JV80 library (it accepts only one card).

For maximum flexibility: The XV-5080 offers everything—128-voice polyphony, compatibility with both SR-JV80 and SRX expansion formats, sample loading capability, and all JV/JD patch compatibility. It’s the most capable unit in the family, though its “cleaner” sound character may not appeal to those specifically seeking vintage warmth.

For beginners on a budget: The JV-1010 or XV-2020 at $100-200 provide access to these classic sounds without significant investment. The JV-1010 includes Session expansion content; the XV-2020 offers USB connectivity. Both require computer-based editing for serious programming.

For software-only workflows: Zenology Pro at $229 provides access to essentially all JV/XV/SRX sounds plus the JD-800 recreation, with modern convenience and no maintenance concerns. For producers who don’t require the hardware’s specific character, this represents the most practical approach.

These synthesizers helped build the sound of an era

The legacy of Roland’s 1990s rompler family extends far beyond specifications and market values. These instruments democratized professional-quality sound design, putting orchestral textures, convincing acoustic emulations, and sophisticated synthesizer tones into the reach of bedroom producers and major studios alike.

The JV-1080 became the sound of an entire decade, appearing on so many hit records that its patches became sonic clichés—which is ultimately a testament to their quality and usefulness. The JD-800’s hands-on interface anticipated the hardware control revival that would eventually make modular synthesis mainstream again. The XV-5080’s hybrid architecture pointed toward the sample-based production that now dominates music creation.

For modern producers, these instruments offer something increasingly valuable: sonic identity. In an era of infinite plugin options and identical sample libraries, the particular character of a JV-1080’s converters or a JD-990’s filters provides a distinctive signature that’s immediately recognizable to those who know it—and pleasingly unfamiliar to those who don’t.

Whether you choose vintage hardware, Roland’s software recreations, or both, understanding this family of instruments provides valuable insight into how the sound of contemporary music was forged. The samples may be compressed, the DACs may be “lo-fi” by modern standards, and the interfaces may feel dated—but these synthesizers continue to inspire and enable music creation three decades after their introduction. That’s a legacy few instruments can claim.
