Formant synthesis is a sound generation technique that creates vocal-like sounds by modeling the resonant frequencies of the human vocal tract. Unlike traditional synthesis methods that generate harmonics, formant synthesis uses banks of resonant filters to amplify specific frequencies called formants – the same acoustic peaks that give vowels their distinctive character. This creates organic, speech-like timbres that range from haunting choir pads to robotic vocals, making it particularly powerful for electronic music, sound design, and any application requiring human-like expression from synthetic sources.
What makes formant synthesis special is its foundation in actual human speech science. When you say “ah” versus “ee,” your vocal tract changes shape, creating different resonant cavities that emphasize different frequency ranges. Formant synthesis replicates this process digitally, allowing producers to morph between vowel sounds, create realistic choir textures, or generate entirely new vocal-like timbres impossible to achieve with traditional oscillators and filters.
The science behind the magic
Think of your vocal tract as a complex tube with varying widths – from your vocal cords to your lips. When you speak, this tube creates standing wave patterns at specific frequencies called formants. The first formant (F1) typically ranges from 200-900 Hz and relates to tongue height, while the second formant (F2) spans 800-2500 Hz and corresponds to tongue position front-to-back. Higher formants add character and individual voice qualities.
Formant synthesis works by implementing banks of resonant bandpass filters, each tuned to these critical frequencies. The source signal – usually a harmonically rich waveform like a sawtooth – gets filtered through these resonances, selectively amplifying harmonics at formant frequencies while attenuating others. This creates the characteristic spectral envelope that our ears recognize as vocal sounds.
The source-filter model underlying formant synthesis divides sound production into two components: the source (your vocal cords vibrating) and the filter (your vocal tract resonances). By controlling filter frequencies, bandwidths, and amplitudes independently, producers can create sounds that morph smoothly between vowels, generate impossible vocal textures, or model the resonant characteristics of acoustic instruments.
A journey through electronic speech history
Formant synthesis has surprisingly ancient roots, beginning with Christian Kratzenstein’s acoustic vowel synthesizer in 1779 – literally the first artificial voice. The concept evolved through mechanical speaking machines before Homer Dudley at Bell Laboratories created the first electronic speech synthesizer, the VODER, in 1939. This massive machine used ten parallel formant filters controlled by a keyboard, requiring skilled operators to produce intelligible speech.
The real breakthrough came with Dennis Klatt’s work at MIT in the late 1970s, whose formant synthesis algorithms became the foundation for DECtalk in 1983 – the first commercially successful speech synthesizer and the voice famously used by Stephen Hawking. Klatt’s hybrid approach combined cascade and parallel filter configurations, establishing the template for modern formant synthesis.
The transition to musical applications reached its pinnacle with Yamaha’s legendary FS1R synthesizer (1998-2000). This revolutionary instrument combined 8-operator FM synthesis with 8 dedicated formant operators, featuring formant sequences up to 512 frames long. Despite its incredible capabilities, the FS1R’s overwhelming complexity led to commercial failure, but it remains the holy grail of formant synthesis – vintage units now sell for $2,000-2,500.
Musical applications and creative possibilities
Formant synthesis excels in applications where traditional synthesis falls short. For vocal synthesis, it can create convincing choir textures without samples, generate robotic vocals that retain human-like expression, or produce gender-bent vocals that maintain natural formant relationships. Electronic producers use it for evolving pads that breathe and morph organically, while sound designers employ it to model resonant body instruments like violins or acoustic guitars.
The technique particularly shines in electronic music genres – from Aphex Twin’s haunting vocal textures to Squarepusher’s complex electronic timbres. Techno producers prize formant synthesis for unique basslines that seem to “speak,” while ambient artists use long formant sequences to create constantly evolving soundscapes. The key advantage is pitch independence – formants stay fixed regardless of the played note, just like human speech.
Modern applications extend beyond traditional synthesis. Producers use formant shifting plugins like SoundToys Little AlterBoy ($49-99) for vocal gender transformation, while tools like iZotope Nectar 4 ($249) incorporate AI-powered formant manipulation for natural vocal enhancement. The technique has found new life in AI vocal processing, content creation for social media, and even VR/AR audio applications.
Technical parameters and practical control
Working with formant synthesis requires understanding several key parameters. Formant frequency controls the center frequency of each resonance – for vowel “ah,” you’d typically set F1 around 710 Hz and F2 around 1100 Hz. Bandwidth determines how sharp or broad each formant peak appears, affecting the naturalness and breathiness of the sound. Amplitude controls the relative strength of each formant, crucial for parallel implementations.
Quality factor (Q) represents the relationship between frequency and bandwidth – higher Q values create sharper, more pronounced formants typical of sung vowels, while lower Q values produce the broader resonances found in whispered speech. Most formant synthesizers also include voicing controls to switch between voiced sounds (with fundamental frequency) and unvoiced sounds (using noise sources for consonants).
Programming effective formant sounds starts with understanding vowel formant patterns. The classic vowels map to specific formant combinations: “ee” uses F1=270Hz and F2=2290Hz, while “oo” uses F1=440Hz and F2=1020Hz. Real-time control comes from mapping these parameters to MIDI controllers, allowing expressive morphing between vowel sounds during performance.
How formant synthesis differs from other methods
Unlike subtractive synthesis, which removes harmonics from rich waveforms, formant synthesis selectively amplifies specific frequencies to create spectral peaks. This approach is more computationally intensive but generates naturally expressive sounds that respond organically to parameter changes. Where subtractive synthesis might require complex filter routing to achieve vocal-like timbres, formant synthesis achieves them directly through its acoustic modeling approach.
Compared to FM synthesis, formant synthesis produces more organic, speech-like timbres rather than FM’s characteristic metallic sounds. While FM excels at bell-like tones and digital textures, formant synthesis specializes in vocal characteristics and acoustic instrument modeling. Additive synthesis can theoretically create any sound but requires controlling hundreds of harmonic partials, while formant synthesis achieves complex vocal timbres with just 3-5 formant filters.
The advantage over sampling is flexibility and memory efficiency. Where vocal samples lock you into specific pitches and formants, formant synthesis allows real-time morphing between vowel sounds, independent pitch and formant control, and the creation of impossible vocal textures. However, sampling still wins for ultimate realism in reproducing specific voices or acoustic instruments.
Current tools and modern workflow integration
Today’s formant synthesis landscape offers options for every budget and skill level. Professional producers often rely on SoundToys Little AlterBoy for vocal formant shifting, while Antares Throat Evo provides more sophisticated vocal timbre manipulation. For full synthesis capabilities, Native Instruments Reaktor 6 offers platforms for building custom formant synthesizers, and UVI Falcon 3 ($209-299) includes formant synthesis among its multi-engine capabilities.
Free options include Auburn Sounds Graillon for live vocal changing and MeldaProduction’s MAutoPitch for basic formant shifting. Most modern DAWs include built-in formant tools – Logic’s Vocal Transformer, Ableton’s Complex Pro warp mode, and Cubase’s VariAudio all provide formant manipulation capabilities integrated into the workflow.

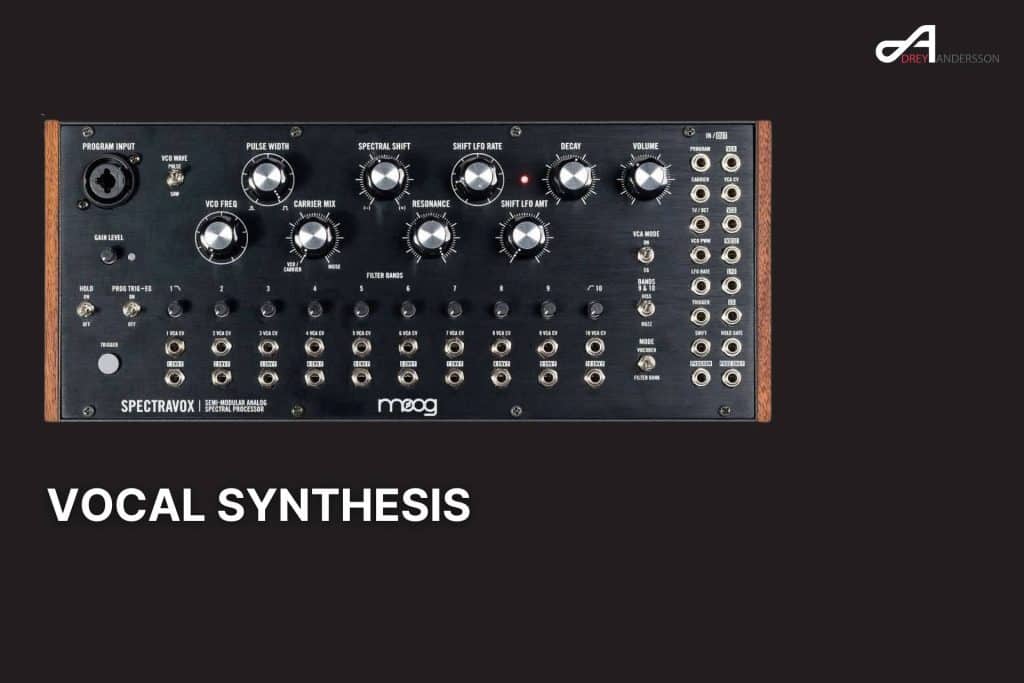

For hardware enthusiasts, the Yamaha FS1R remains the ultimate formant synthesizer, though finding one requires patience and $2,000-2,500. Modern alternatives include the Korg Opsix’s formant-like FM capabilities and Moog’s Spectravox semi-modular vocoder (2024), which combines formant filtering with analog synthesis. The Yamaha Montage/MODX series carries forward some FS1R DNA through its FM-X engine with talking modulators.
Practical tips for producers
Start simple when exploring formant synthesis. Use a harmonically rich source like a sawtooth wave, then experiment with morphing between basic vowel sounds using preset formant values. Layer multiple formant-processed sounds with different vowel settings to create choir-like textures, or use formant sequences to program evolving pads that change character over time.
For mixing, formant-synthesized sounds often benefit from gentle compression to maintain formant clarity and complementary EQ to enhance their vocal characteristics. Choose reverbs that complement the organic nature of formant sounds – halls and chambers often work better than synthetic spaces. Real-time control through MIDI controllers or automation brings formant synthesis to life, allowing expressive morphing that static settings can’t achieve.
Creative applications include using formant filtering on percussion for unique character, applying extreme formant manipulation for abstract sound design, or combining formant synthesis with traditional instruments for hybrid textures. The key is understanding that formant synthesis excels at creating sounds that seem to have a voice or personality, even when applied to non-vocal sources.
Conclusion
Formant synthesis represents one of the most scientifically grounded approaches to electronic sound generation, translating centuries of speech research into musical tools. While it requires more technical understanding than basic subtractive synthesis, the rewards include access to organic, expressive sounds that remain unique in the synthesizer world. Whether you’re seeking realistic vocal textures, impossible robotic voices, or simply want to add more human-like expression to your electronic music, formant synthesis offers sonic possibilities that continue to inspire producers decades after its invention.
The technique’s evolution from 18th-century mechanical vowel synthesizers to modern AI-powered vocal processing demonstrates how fundamental acoustic principles can drive technological innovation. As formant synthesis continues integrating with machine learning and expanding into new applications, it remains an essential tool for any producer seeking to push creative boundaries and develop a distinctive sonic signature.
